SUPERCOLOR® Z/C-Section

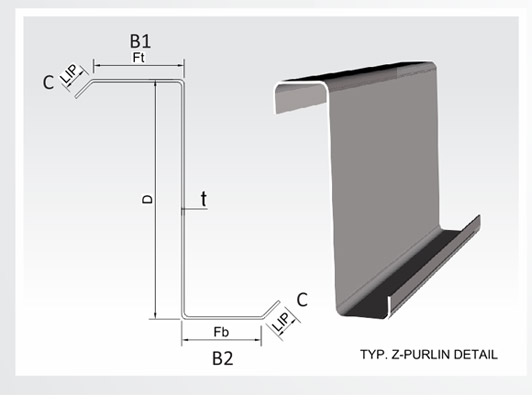

  Z Section
  C Section
Z-Section Sheet (All Dimensions in mm)
  H B1 B2 C T
Z150 150 58 51 15 & 20 1.5-2.5
Z180 180 58 51 15 & 20 1.5-2.5
Z200 200 60 55 15 & 20 1.5-2.5
Z220 220 67 61 15 & 20 1.5-2.5
Z250 250 67 61 15 & 20 1.5-2.5
C-Section Sheet (All Dimensions in mm)
  H B1 B2 C T
C150 150 50 50 15 & 20 1.5-2.5
C180 180 50 50 15 & 20 1.5-2.5
C200 200 58 58 15 & 20 1.5-2.5
C220 220 58 58 15 & 20 1.5-2.5





Purlins are Available in Mild Steel as well as Galvanized Steel as Per Requirements.

Benefits

  • Saving in steel up to 35%
  • Saving in construction cost up to 30%
  • Sections are supplied in exact length & pre-punched holes,
    there by reducing wastage of steel and fabrication cost.
  • Saving in construction time
  • Economy due to reduction in dead weight on the main frame structure.
  • Ability to span long lengths.
  • Fast to erect and easy handling
  • Slot Holes in Web and Flanges controlled by PLC.
  • No site drilling/ cutting required.
  • III. Custom made section lengths lead to no wastage and speedy erection.

Z Et C Purlins are structural members designed and produced using modern and advanced technology for use of secondary supports for economical roof sheeting and wall cladding systems in any type of building

The design of steel structures involves selection of most economical support members to carry loads and withstand direct and induced forces to which the structure may be subjected during its life span. These sections are also available in multiple grades starting from E250 to E410, ST 52, IS 2062.

Super Z Et C Purlins are gaining popularity with engineers and architects worldwide, due to its wide product range and superior sectional properties which lends greater flexibility to a designer leading to efficient and economical design.

Super Z Et C Purlins are supplied in customized lengths as per the lengths of the bays with pre-punched holes in slotted pattern for quick bolting. This kind of system gives an excellent strength to weight ratio with flexibility for specific size requirement.

Slot Holes Options: 1) 14*22mm 2) 18*36mm

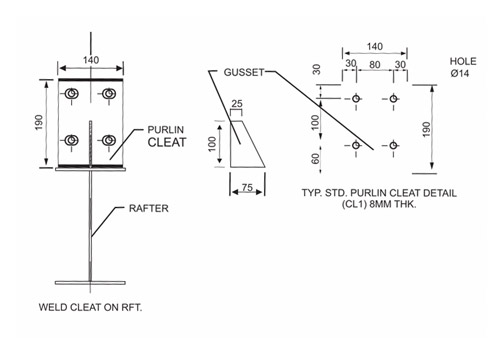

Note : 1 All bolts are M12 milds Steel Bolts , 2 For rafter with web depth that is more than one meter an additional flange brace is added as shown n broken lines.
